Description

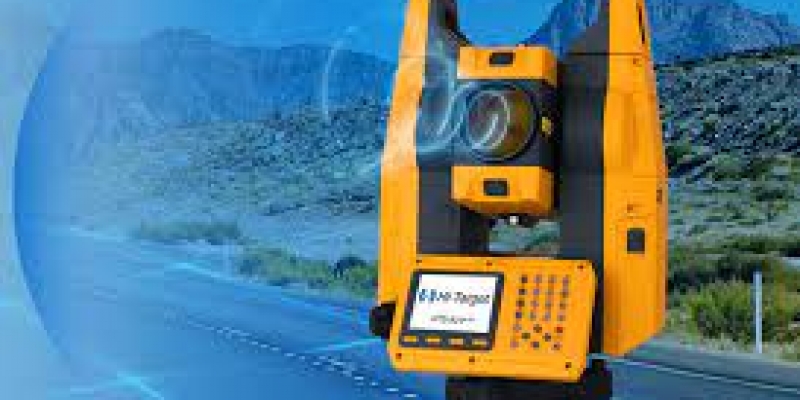

Fitting to Project and Building Construction Market. Our this Total Station
is nonprism Total Station which has so best price .
Our this series Total Station has the European & USA brand APD
Photodiode and Integrated Circuit ,reliable performance . The distance
measuring parts is the laser diode exported from European which is
safety to human eyes. It is fit to Professional Survey,Project
Survey,Teaching Training ,Precision Industrial Installation ,ect . It is
designed for the project users ,simple ,practical ,the normal
features-one touch ready (angle ,distance , coordinate,layout ).
Feature:
Personality Function :
personality function setting ,Free Arrangement Functional Manual
according to your requirements, using optical glasses with multilayer
coating, imaging is clear and bright to reduce the human eyes
observation fatigue ;
High-end integrated circuit :
All integrated circuit from European &USA ‘s manufacturer :Reliable and
Stable;
Friendly Interpersonal Communication Interface:
Very friendly interpersonal communication interface ,the words is
English from Angle to distance .And adding personalized user-defined
key . You can learn well to cooperate it within 5minutes without manual.
Greatly improve the work efficiently;
Powerful two-way data communication function :
Powerful practical real-time two-way data communication function to
communicate data with PC by RS232 port ,USD port or Bluetooth ;
Nonprism 300 meter :
300 meter without prism ;it is can reach 1000meter by flat prism;
Multifunction :
The European Custom ,absolute coding,laser alignment,ladrt
aiming ,electronic compensator.
| Mts -602 R reflectorless total station | |
| Image | Erect |
| Magnification | 30X |
| Effective Aperture | 45mm |
| Resolving Power | 4″ |
| Field Of View | 1°30′ |
| Minimum Focus | 1.5m |
| Distance Measurement(under Fair Weather Condition) | |
| Nonprism | 200m |
| Range 1 Prism | 5.0km |
| Sheet | 800m |
| 3 Prism | 7.5km |
| Accuracy | 2mm+2ppmxD |
| Minimum Count | 1mm |
| Distance Unit | ft.Or m selectable |
| Measuring Time | |
| Fine | 1.8sec.(first time2.5sec.) |
| Tracking | 0.4 Sec. |
| Maximum display | 999999.999m |
| Atmospheric Correction | |
| Temperature | C or F |
| Atmospheric Pressure | hPa/mmH/inHg |
| Atmospheric Deflection &
Earth Curvature Correction |
k=0.14/0.20/0 |
| Prism Constant | 0 mm / 30 mm |
| Angle Measurement | |
| Measurement Method | incremental Photoelectronic Encoder |
| Detection Method | |
| Horizontal | Dual |
| Vertical | Dual |
| Accuracy | 1″ |
| Minimum Readout | 1″and5″ |
| Sensitivity of Vials | |
| Plate Vial | 30″/2mm |
| Circular Vial | 8’/2mm |
| Vertical Compensation | Available |
| Type | Liquid-electric detection/Plate level |
| Compensation Range | +/-3′ |
| Resolution | 1″ |
| Optical Plummet/ laser plummet alternative | |
| Image | Erect |
| Magnification | 3X |
| Focus Rang | 0.5m-infinity |
| Display | Double Side, LCD, Four-line Display |
| Data Port | RS-232 |
| Battery | Lithium Rechargeable |
| Voltage | 7.4VDC |
| Operation Time | Distance and angle measurement: 8.5hours; Angle measurement 30 hours |
| Charging Tine | 2 hours |
| Weight | 10 kgs |
