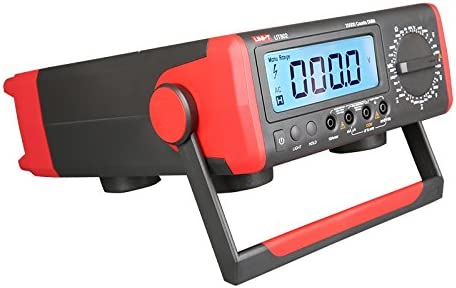

UT802 is a 20000-count manual range, benchtop AC/DC powered digital multimeter, it has an accuracy of ±(0.1%+3), equipped with large-screen,
large-character backlight LCD, full-function and full-range overload protection, unique exterior, and accessary tool box.
It is used for measurements of AC/DC voltage, AC/DC current, resistance, frequency, capacitance, temperature, transistor (hEF), diode, and continuity buzzer,
and it is a necessary experimental tool for laboratories in colleges and universities.
DC Voltage (V): 200mV/2V/20V/200V/1000V ±(0.1%+3)
AC Voltage (V): 2V/20V/200V/750V ±(0.5%+20)
DC Current (A): 200μA/2mA/20mA/200mA/10A ±(0.5%+20)
AC Current (A): 2mA/20mA/200mA/10A ±(0.8%+40)
Resistance (Ω): 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/200MΩ ±(0.5%+10)
Capacitance (F): 20nF/2μF/200μF ±(4%+10)
Frequency (Hz): 2kHz/200kHz ±(1.2%+10)
Temperature (°C): -40 °C ～ 1000°C ±(1.2%+25)
Max Display: 19999
Manual Range: √
Continuity Buzzer: √
Low Battery Indication: √
Data Hold: √
LCD Backlight: √
Input Impedance: ≥10MΩ
Misuse Alarm: √
Power: AC 220V,or 110V, or 1.5V batteries (2#) × 6
LCD Size: 108mm × 34.5mm
Product Color: Red and grey
Product Net Weight: 1650g
Product Size: 300mm × 245mm × 105mm
Test Lead, Alligator Clip, Point Contact Temperature Probe
Multi-Purpose Socket, Power Adapter, Gift Box, User Manual
