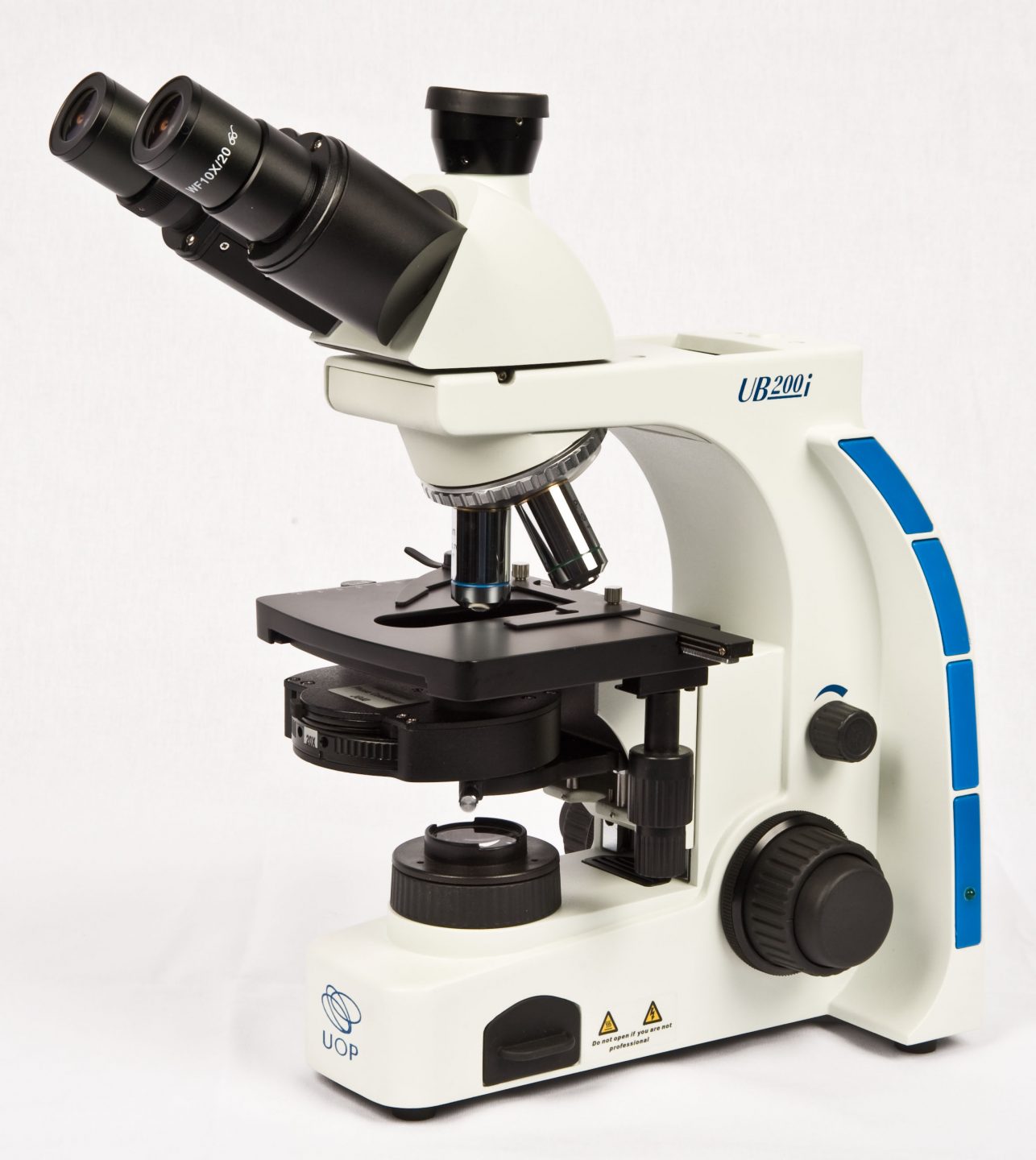

UB200I MICROSCOPE SERIES DARKFIELD/BRIGHTFIELD

Description

BASIC COMPOSITION

Main body

  • Coaxial coarse and fine focusing knob, height adjustable.
  • Revolving nosepiece: quintuple, inward facing.
  • Power supply 110/220V, 50/60Hz, 5W.
  • LED lamp 4W (equivalent to 50W halogen lamp)

Head

  • Binocular or trinocular.
  • 30o inclined.
  • Diopter adjustable.
  • C­-mount adapter (trinocular)

Interpupillary distance

  • Interpupillary distance 48­75mm

Plan eyepiece

  • WF10X/20, High eye­point up to 21mm (pair)

Objetives

  • Infinity Plan Objective 4X/0.13
  • Infinity Plan Objective 10X/0.30
  • Infinity Plan Objective 40X/0.70 (Spring)
  • Infinity Plan Objective 100X/1.25 (Spring,Oil)

Others

  • Green (GIF) and Grass Glass.
  • Inmersion oil (8 ml)
  • Allow screw drivers
  • Power cord

Accessories

  • ISAS HEAT Stage for UB200i
  • Phase contrast condenser.
  • Centering telescope
  • Full set of phase contrast optics, both positive and negative.
  • Epi fluorescence system with filters for common analysis (DAPI, Hoetsch, Viability and more)
  • Digital camera.
