- Fully automatic reading
- Automatic calibration, alignment and last row detection
- Large, non-volatile memory stores at least 50 user-specified wash protocols
- Constant monitoring of vacuum and pressure
- Programmable automatic rinse cycle

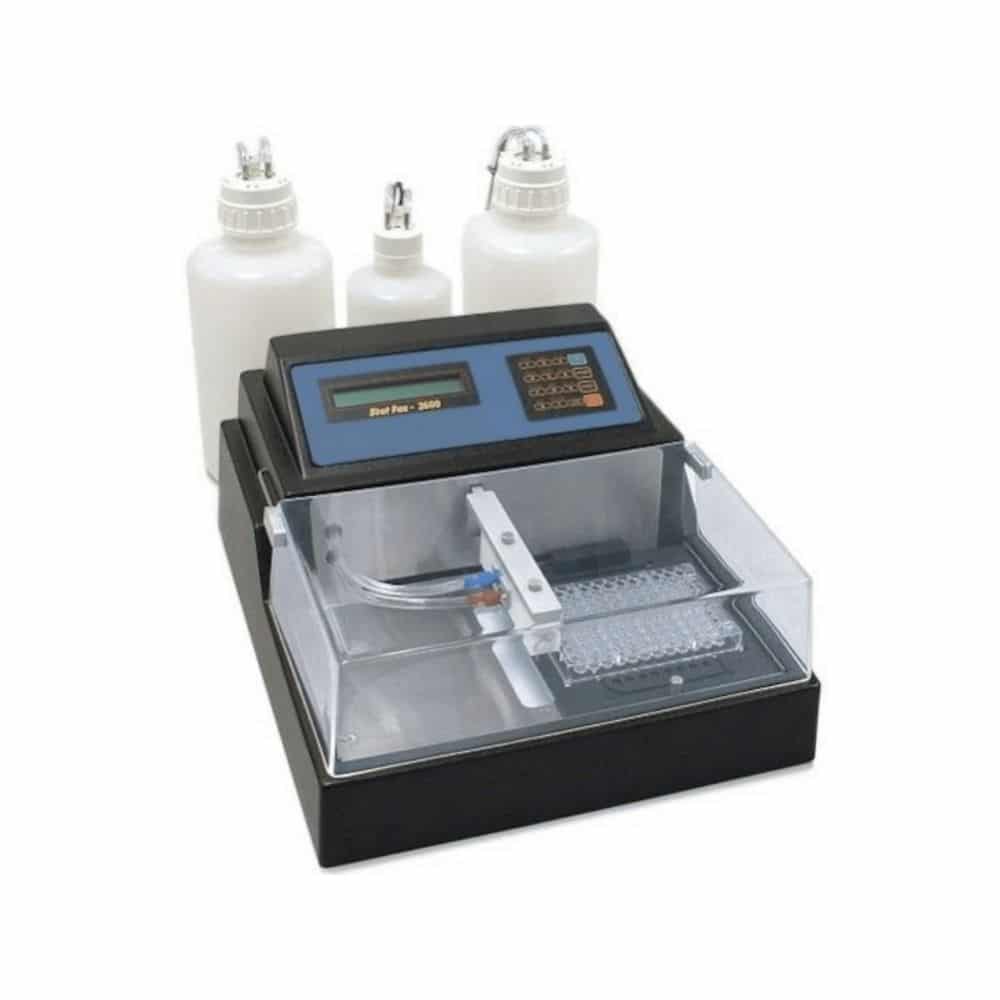

The Awareness Technology Stat Fax® 2600 Microplate Washer is a fully automatic system designed for use with enzyme-linked immunosorbent assays (ELISA or EIA). This includes processing clinical diagnostic assays, multistep washing, rinsing, and soaking.
The microprocessor-controlled Stat-Fax® 2600 accepts a wide array of standard microplates and micro strip trays, and even accommodates partially filled micro strip trays. The instrument can also work with microwells having flat-, round-, or V-bottom configurations. Fully programmable, the Stat-Fax® 2600 washer provides multistep combinations of dispense, aspirate, combined aspirate/dispense, and timed soak cycles.
The Stat Fax® 2600 makes operation convenient with its user-programmable tests. The unit can store approximately 50 separate tests with up to 20 steps in its non-volatile memory. Moreover, the instrument can be programmed to automatically perform a rinse operation at a particular time of day, and can be used in the direct mode whereby wash operations are selected via the built-in keypad.
With the well depth configuration feature, the Stat Fax® 2600 gives the user freedom to assign the well depth, if preferred to the automatic well sensing option. For volumes larger than the capacity of the wells, or to reduce bubbles, a top-wash feature is included so the wash solution may be aspirated off the top as it is being dispensed. In addition to the 8-probe combination dispense/aspirate wash head, the Stat Fax® 2600 Microplate Washer is supplied with wash, rinse, and waste bottles utilizing integral electronic level sensors, and an aerosol shield.
|Physical||8/12 probe microplate transport accepts flat, round, or V-bottom wells, plates and strip trays
8-probe aspirate and dispense head (12- or 16-probe heads optional)
Stainless steel plate bed
Wash, rinse, and waste bottles with electronic level sensing on all bottles
Transparent acrylic aerosol shield
|Dimensions (W x D x H)||13.5″ x 16″ x 7.5″ (34.3 cm x 40.6 cm x 19 cm)|
|Bottle assembly (W x D x H)||13.5″ x 5.5″ x 10.5″ ( 34.3 cm x 14 cm x 26.7 cm)|
|Weight||22 lb. (10 kg)|
|Electronic||Z80 microprocessor, 2.0 MHz clock
8K bytes non-volatile RAM
32K bytes EPRO
24 character x 2 line liquid crystal display (LCD) 4 keypad.
|Power Source||Switch selectable power supply (115V or 230V indicated)
Voltage Source 110-120V / 220-240V from 50 to 60 Hz, CAT II
Power Consumption less than 70 Watts
Fuse 1/2 A, T rating, 250 V
All power cords must be approved for the country of use.
|Environmental Conditions||Indoor use
Altitude up to 2000 m
Temperature 5° C to 40° C
Humidity 80% for temperatures up to 31° C decreasing linearly to 50% humidity at 40° C
Mains supply voltage fluctuations not to exceed ± 10% of the nominal voltage
