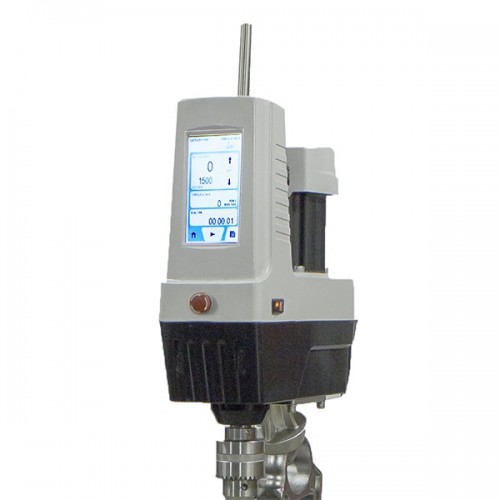

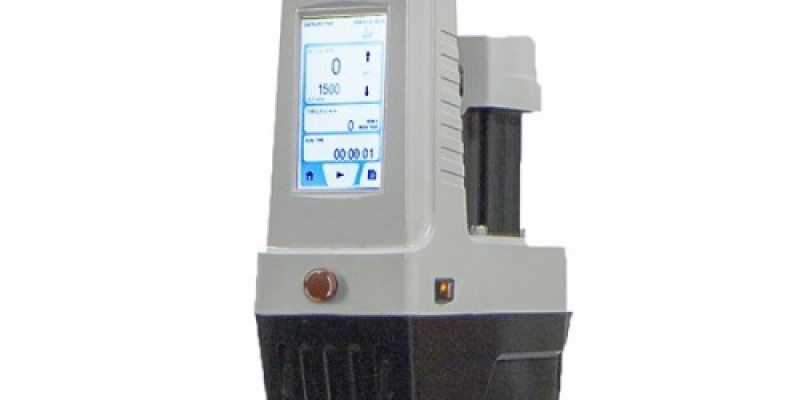

A powerful combination of torque and electronic sophistication. The robust ½ horsepower motor, PC/PLC communications and extensive features make the Caframo Crossover 1540 Industrial Mixer unparalleled in the market. Mixing up to 200 litres (55 gallons) of basic pre-mix, industrial pilot plant volumes, or full production batches, this portable mixer weighs only 12 kg (26.5 lb). The resistive touch screen enables simple feature operation (timers, alarms, rotation direction, resume on power up, start, stop) without removing your gloves! Control the mixer with a PC or PLC via USB, RS232 or 4‑20 mA or data log speed and torque directly to a memory stick. Install immediately with standard 120 V cord set, and four bolt mounting. Optional plate or C‑clamp set attaches the Crossover to a stand, drum or customer mount and allows optimal shaft angle in vessel. Includes chuck, chuck key, chuck shaft guard, installed screen protector, USB memory stick, mounting bolts, power cord, manual, calibration certificate and three year warranty.
AMBIENT TEMPERATURE OPERATION 5-40 ºC(41-104ºF)
-
APPROVALS – NORTH AMERICA CAN/CSA 61010-1 & 61010-2-51 3rd Ed., UL 61010-1 3rd Ed.
-
CONNECTIVITY PORTS Standard USB A, Mini USB B, DB9, 4-20 mA
-
FREQUENCY 60 Hz
-
HOUSING Flame Reardant Nylon 6
-
OUTPUT POWER 300 Watts (½ hp)
-
RELATIVE HUMIDITY OPERATION 80%
-
ROTATION DIRECTION Both
-
SPEED – HIGH RANGE 300-1500 rpm
-
SPEED – LOW RANGE 50-299 rpm
-
SPEED ACCURACY Rolling average of 10 second period
-
SPEED DISPLAY Yes
-
THROUGH SHAFT Yes
-
TIMER Yes
-
TORQUE DISPLAY Yes
-
TORQUE MAXIMUM 3000 Ncm (264 in-lbs = 4248 in-oz)
-
VISCOSITY MAXIMUM 180 000 mPa·s (180 000 cP)
-
VOLTAGE 120 volt
-
VOLUME MAXIMUM 200 L (55 US Gallons)
-
WARRANTY 3 years
-
WEIGHT 12 kg (26.5 lb)
-
ZERO TORQUE Yes
-
SPEED 50-1,500 rpm
