MCP ACL-7000 – ANALOG CIRCUIT LABORATORY CIRCUIT TRAINING EQUIPMENT/LOGIC TRAINER BOARD

Description

ACL-7000 ANALOG CIRCUIT LABORATORY

Features

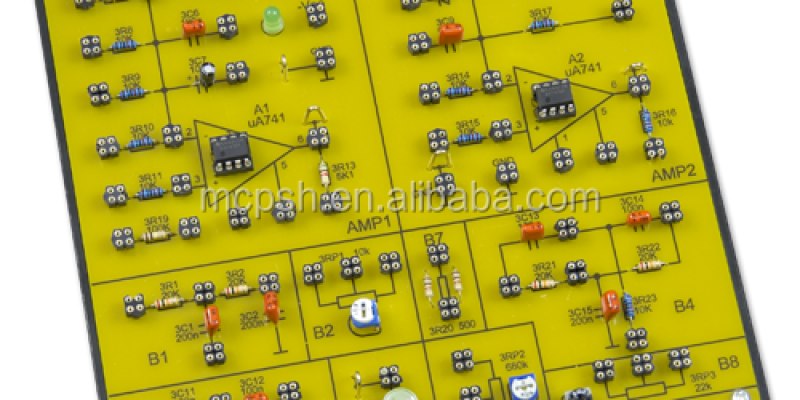

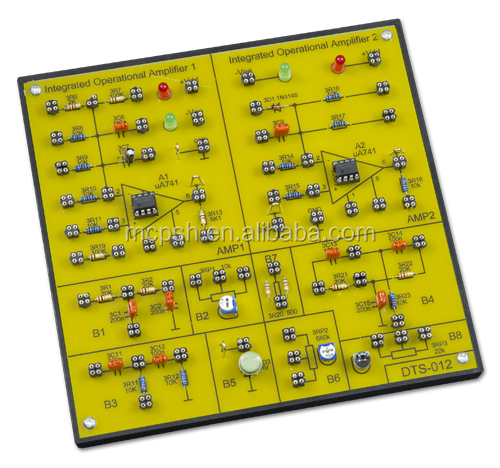

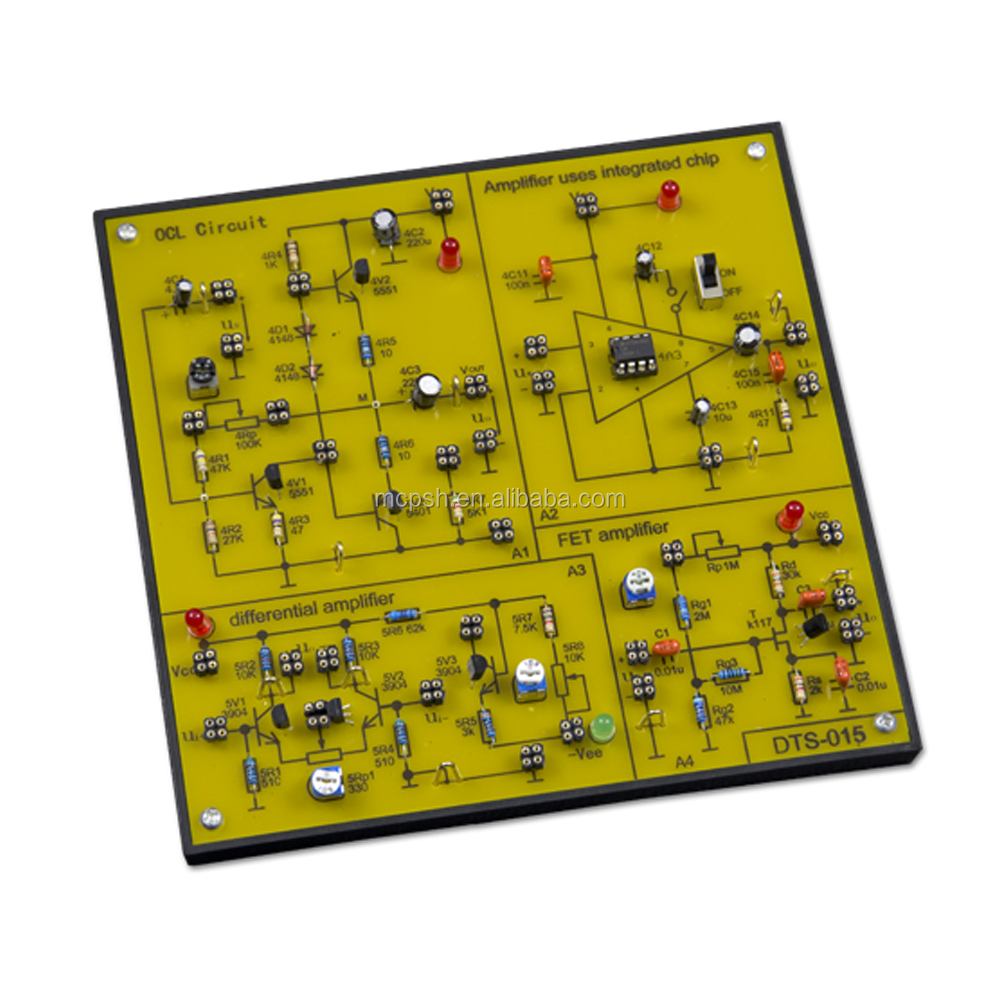

.Four circuit boards form 22 experiments.
.Ideal tool for learning the basics of analog circuits.
.Step-by-step exercises and application.
.Integrated training system, with complete <INSTRUCTION>.
.Combination with M21-7000 digital-analog training system as main unit.
.Step-by-step exercises and application.
.Expandability and flexibility of experiments greatly
increased by large breadboard.

.Boards can be changed easily.

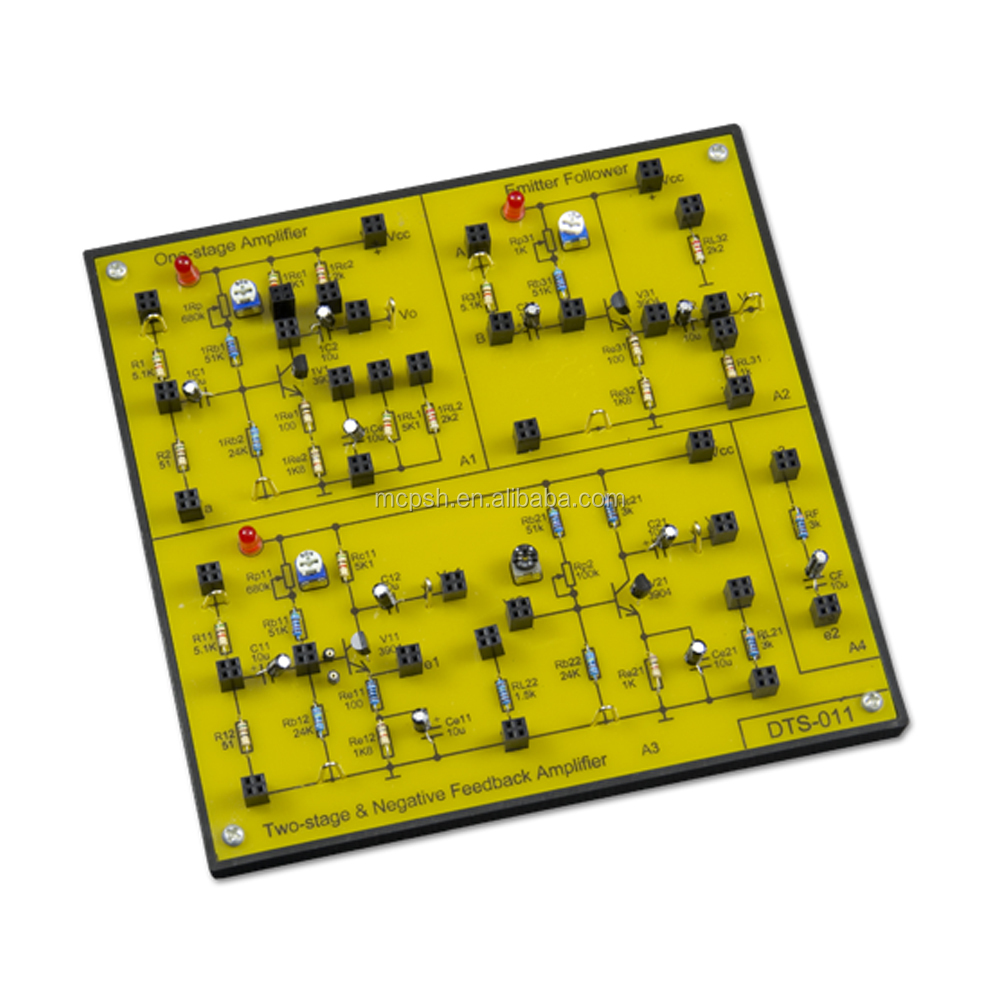

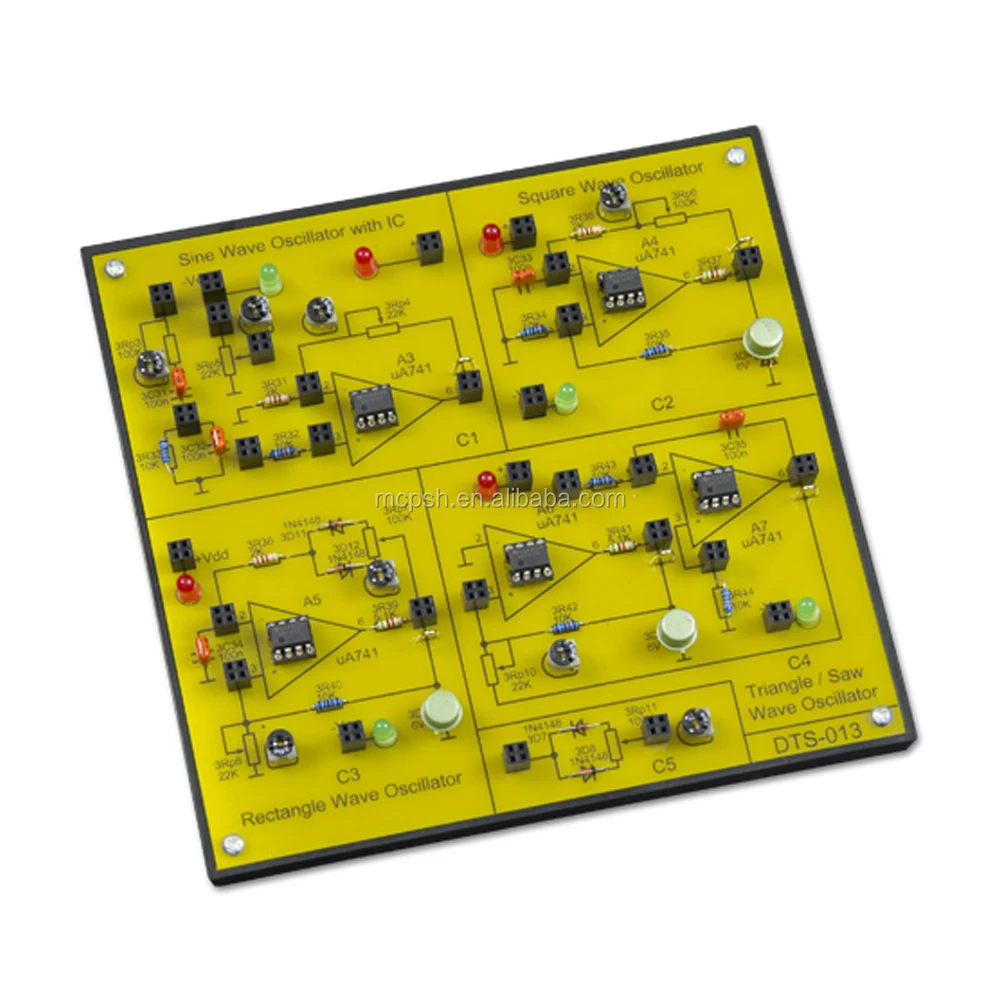

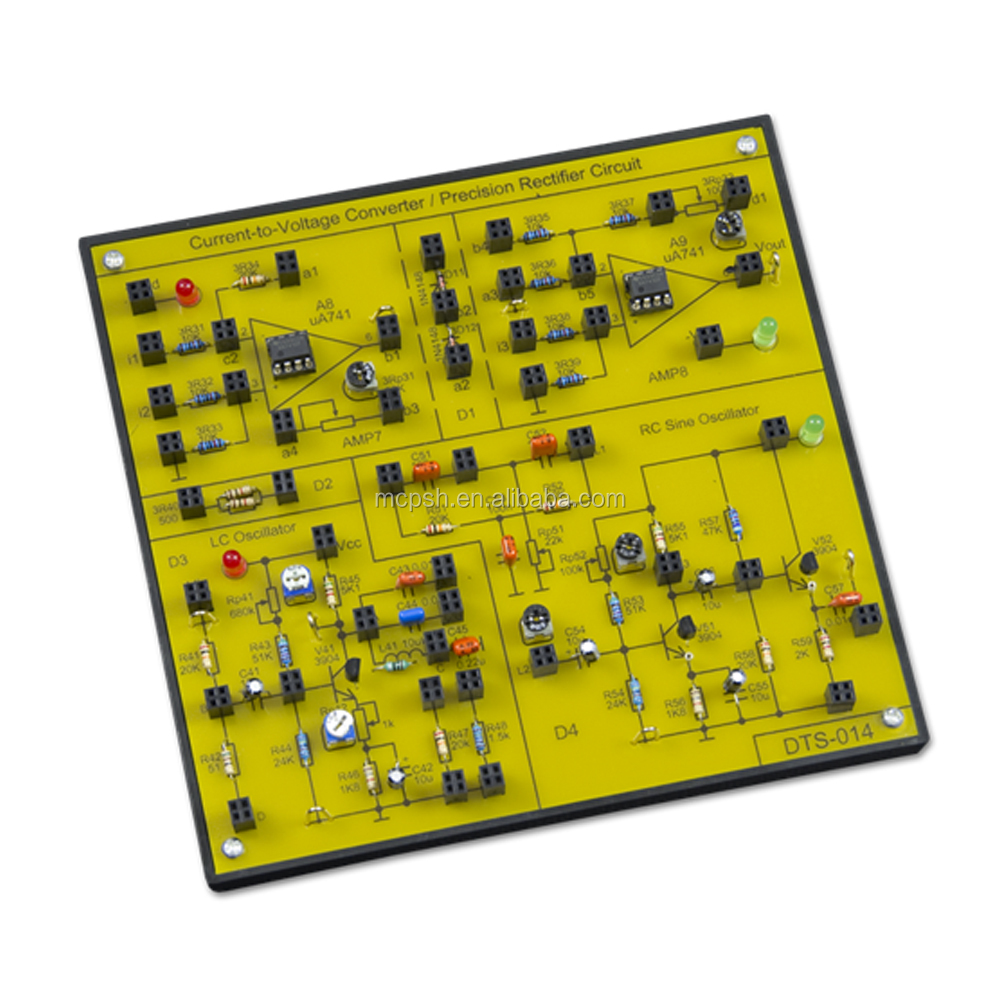

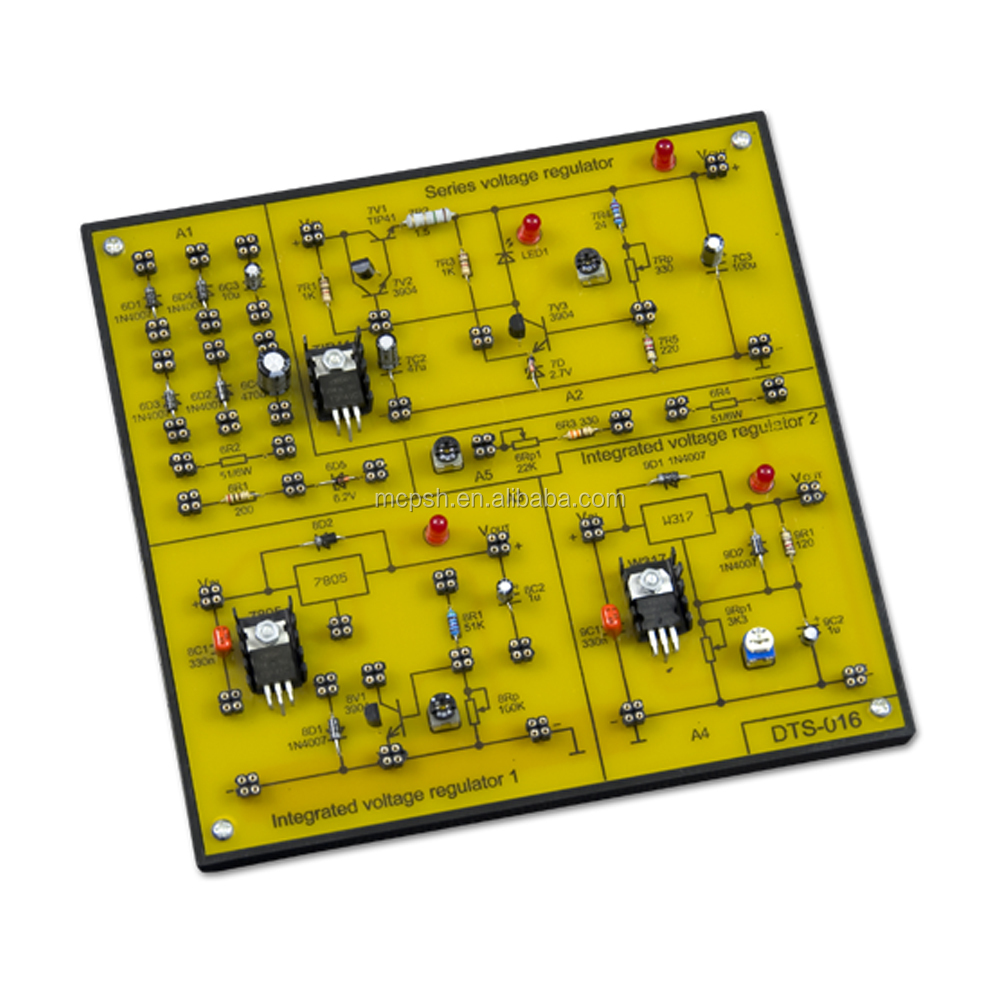

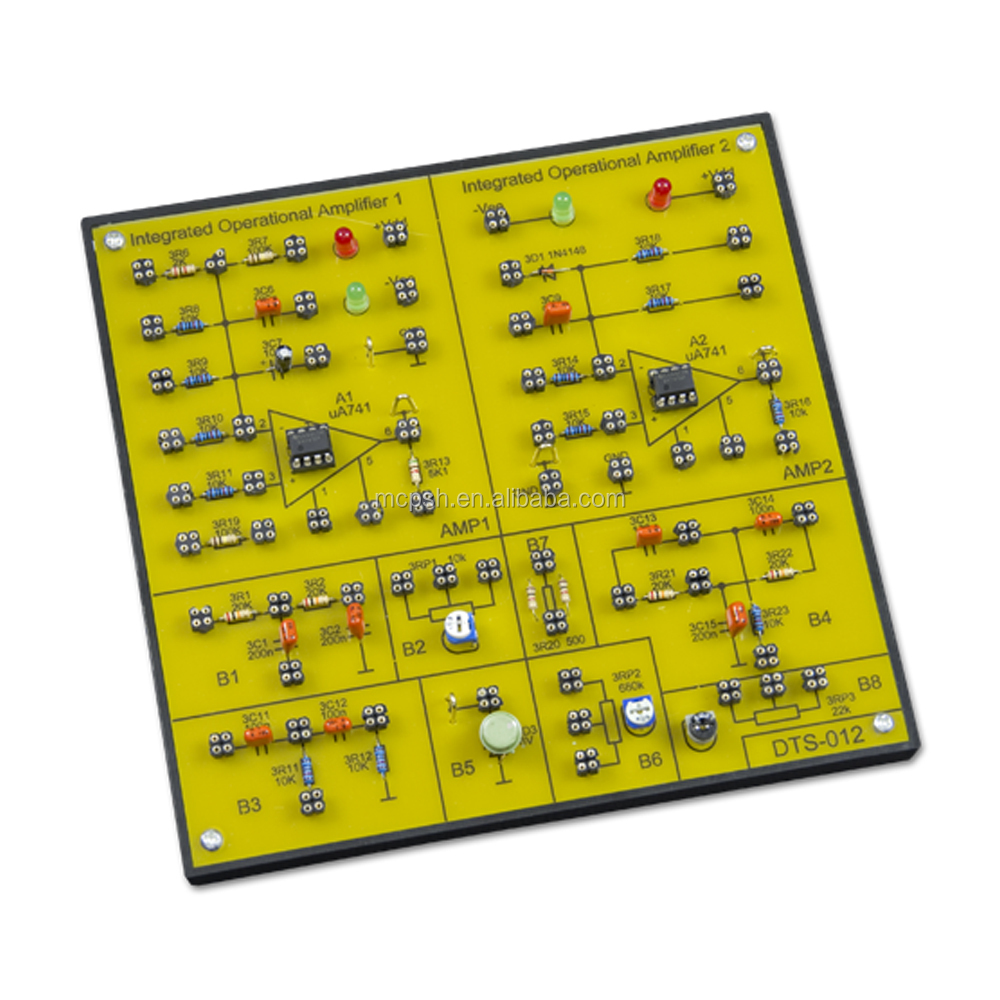

The ACL-7000 analog circuit laboratory is a comprehensive and self-contained system suitable for tuition and experimentation with a range of analog electronics circuits. All necessary equipments such as power supply, signal generator, switches and displays are built-in on the main unit. The 6 circuit boards cover a wide variety of essential topics in the field of analog electronics. It is a time and cost saving device for both students experiment and researchers interested in developing and testing circuit prototypes.

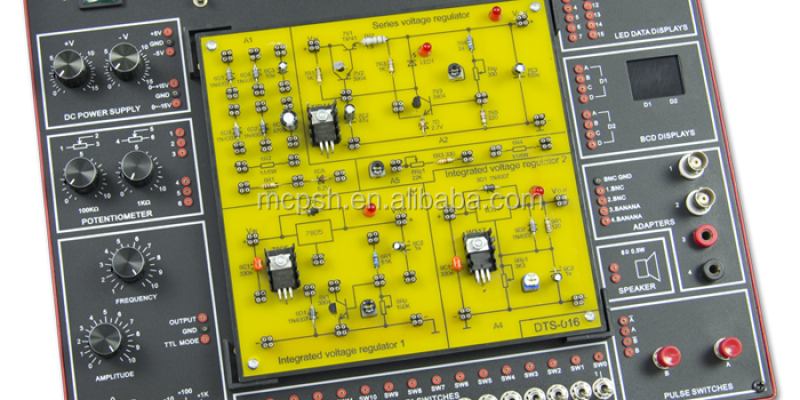

MAIN UNIT M21-7000

SOLDERLESS BREADBOARD	Interconnected with 2820 tie points nickel plated contact,fitted all DIP sizes and all components with lead and solid wire AWG # 22-30 (0.3-0.8mm).It can be changed and replaced for different purpose and can be connected with demonstration panel. Therefore, it is very convenient for both teachers and students.
DC POWER SUPPLY
A. Fixed DC output	+5V, 1A
B. Fixed DC output	-5V, 1A
C. Variable DC output	0V to +15V, 1A
D. Variable DC output	0V to –15V, 1A
POTENTION METERS
A. Variable resistor VR1	1kΩ
B. Variable resistor VR2	100kΩ
FUNCTION GENERATOR
Frequency range	1Hz-10Hz 10Hz-100Hz 100Hz-1kHz 1kHz-10kHz 10kHz-100kHz
Amplitude	Sine wave output:0-10 Vpp variable Triangle wave output:0-10 Vpp variable Square wave output:0-10 Vpp variable TTL mode output:4 Vpp
TWO DIGITS OF 7 SEGMENT LED DISPLAY
TWO PULSE SWITCH	2 pcs pushbuttons contain switches debouncer for eliminating the bounce caused by switch from“open” to“close” or from“close” to“open”position.
SIXTEEN DATA SWITCHES	16pcs toggle switches and corresponding output point. When switch is set at “down”position,the output is LO level; contrarily, it is to be HI level while setting at “up”position.
SPEAKER	2-1/2 inch diameter, 8 ohm/0.5W to be used for load.
FOUR CHANNEL ADAPTOR	Both of the two banana sockets’ and two BNC jacks’ point tips are changeable. It is suitable for M21-7000 to be connected with peripherals.
SIXTEEN BITS LED DISPLAY	16 red LED’s separate input terminals. The LED will be lighted up when input is at “HI level” ,and it will be turned off when it is at no input or at “LO level”.
UNIVERSAL CONNECTOR FIXED HOLDER
It reserves universal connector fixed holder on the panel in order to be connected with various universal connectors, which are available	(1) Straight header 60 pin
	(2) Card edge connector 2.54mm 62pin
	(3) D sub25 pin connector, male & female
	(4) Card edge connector 3.96mm 56pin
	(5) Dip sockets connector 28 pin & 40 pin
