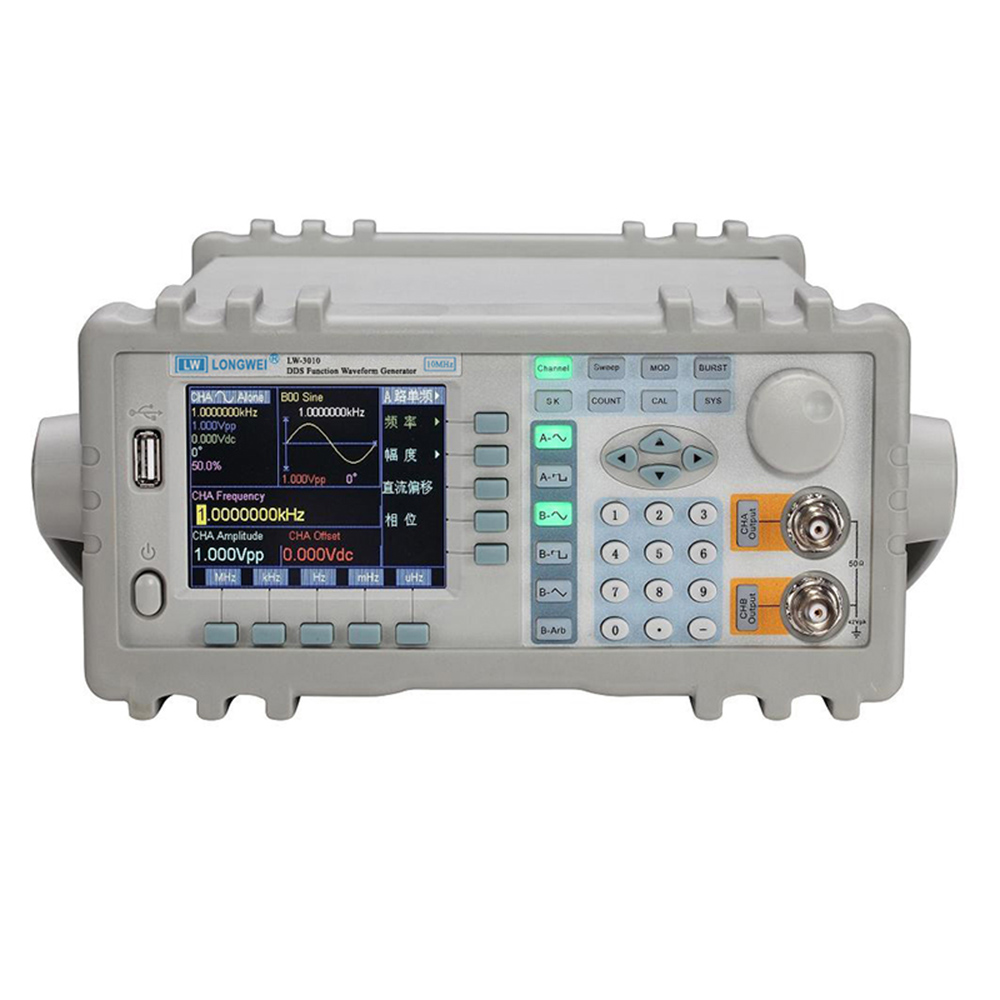

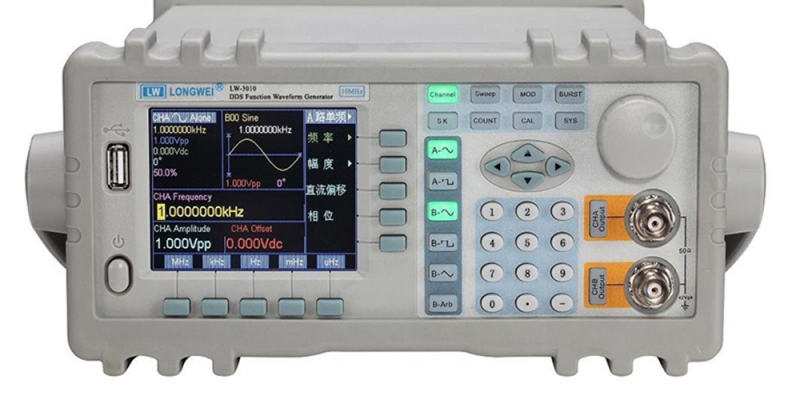

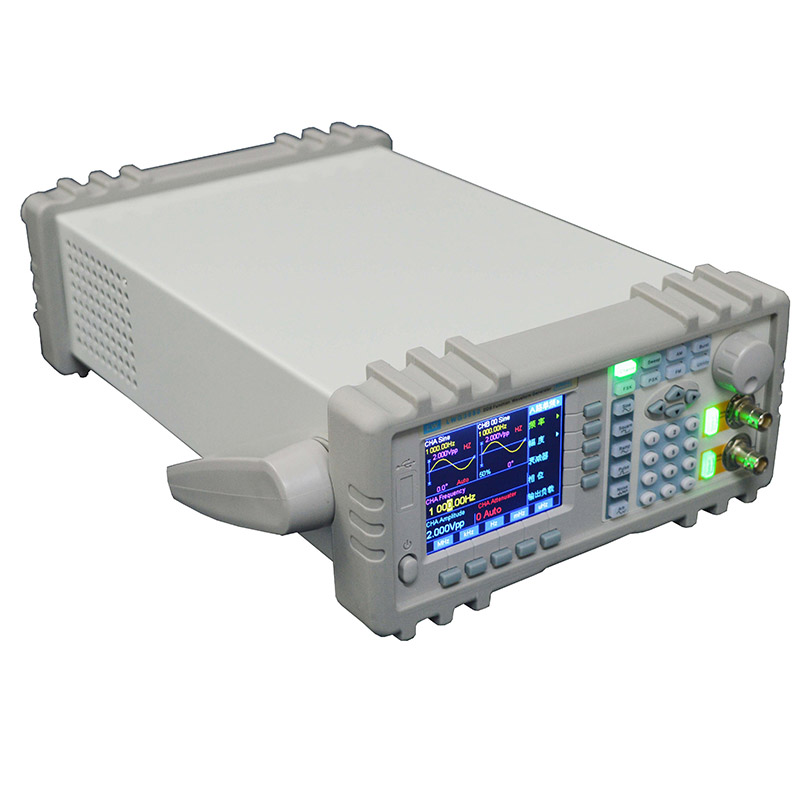

LWG-3010 10MHz DDS Function Signal Generator 100MSa/s 8Bits Portable Arbitrary Waveform Generator

1. High frequency accuracy: frequency accuracy can reach the order of 10-5
2. High frequency resolution: full range frequency resolution 20mHz
3. The waveform accuracy is high: the output waveform is synthesized by the function         calculation value, and the waveform precision is high.Small distortion
4. Multiple waveforms: 32 waveforms can be output
5. Pulse characteristics: accurate pulse wave duty ratio can be set
6. Harmonic characteristics: the fundamental and harmonic signals can be output, and       the phases are adjustable.
7. Scanning characteristics: amplitude scanning function with frequency scanning,

scan start and end point arbitrary settings
8. Modulation characteristics: can output frequency modulation FM signal
9. Keying feature: can output frequency shift keying FSK, amplitude shift keying ASK          and phase shift keyed PSK signal
10. Burst characteristics: can output burst count pulse signal
11. Operation mode: all key operation, Chinese/English two menu display, direct
digital setting or knob continuous adjustment
12. Protection function: over-voltage protection, over-current protection, short-circuit          at the output end for a few minutes protection, backflow voltage protection
13. Frequency measurement: optional frequency counter function for internal/external         signals frequency measurement
14. Power amplification: optional power amplifier, output power can reach 7

15. Program control features: optional RS232 interface

Output A waveform characteristics

Waveform types: 32 waveforms such as sine wave, square wave, triangle wave, sawtooth wave, pulse, etc.
Waveform length: 1024 points
Sampling rate: 100MSa/s
Waveform amplitude resolution: 8bits
Sinusoidal harmonic suppression: ≥40dBc (<1MHz), ≥35dBc (1MHz~20MHz)
Sinusoidal total distortion: ≤1% (20Hz~200kHz)
Square wave lifting time: ≤35ns
Overshoot: ≤10%
Square wave duty cycle: 1%~99%

Output B waveform characteristics

Waveform types: 32 waveforms such as sine wave, square wave, triangle wave, sawtooth wave, pulse, etc.
Waveform length: 1024 points
Sampling rate: 12.5MSa/s
Waveform amplitude resolution: 8bits
Square wave duty cycle: 1%~90%
