Description

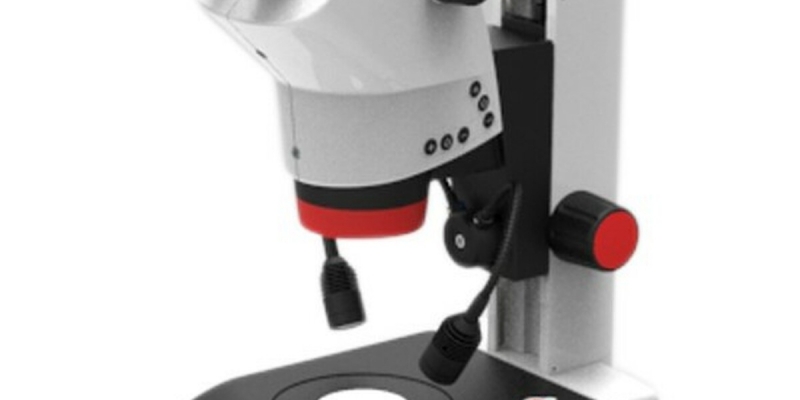

The Luxeo 6Z is the first in a new series of stereo microscopes from Labomed™ designed to bring greater flexibility and performance to work stations. With total integration of gooseneck and axial illumination, versatility in transmitted illumination features, and highly ergonomic stand options to choose from, the Luxeo 6Z will delight in every environment.
Two flexible goosenecks cables are integrated within the focus bracket, creating more clearance for controlling focus drive. A built in 23-LED ring light with sectional controls will enable axial illumination while mitigating surface glare. An intuitive membrane switch cluster makes light intensity control convenient.
A bright LED base light illuminates objects from below. Users can quickly convert the system into a slim-base setup by removing the illumination cartridge. A lever toggles between bright field and dark field transmitted illumination for biological specimen. Flex Arm, Boom Stand, and Slim Base stand options are available.
A well-designed 6:1 Zoom system provides ease and comfort in accessing the right resolution. A detent system with magnification stops can be engaged for calibrating systems to processes. MaxLite™ coatings on all optical surfaces reduce glare and improve light homogeneity in the most demanding environments.
The Luxeo 6Z Stereo Microscope with darkfield/brightfield has several applications in biomed (sperm/IVF), wellness clinics, gem/crystal, etc.
Product Specifications
| Optical System | Greenough |
| Magnification | 6:1 Zoom Ratio |
| Eyepieces | Widefield 10x/22mm (interchangeable) |
| Diopter Correction | ± 5 diopters |
| Viewing Body | Integrated Binocular, 45°, 50-75mm diopter adjustment |
| Working Distance | 110 mm |
| Magnification Range | 8x to 50x |
| Object Field Diameter | 4.4 to 27.5 mm |
| Eye Guards | Rubber, Foldable |
| Illumination Control | LED ring light with ± 30° oblique illumination settings with intensity control. Front Angle Arc illumination with cluster of 11 LEDs. Rear Angled Arc illumination with cluster of 12 LEDs. Dual LED goose neck with intensity control. All intensity controlled through membrane switch on microscope pod. |
| Transmitted Light | Detachable BF/DF (Bright field/Dark field) |
| LED Life | Up to 25,000 hours |
| Light Quality | Homogeneous daylight (6500°K), free of UV and IR emmissions |
| Power Supply | Universal 100V – 240V, 50/60Hz integrated power supply with voltage flux stablizer |
| Warranty | 5-year manufacturer warranty and free 1-year extended warranty for a total of six years. |
| Certification | CE, ISO 9001, ISO 14001 and ROHS Certified |
