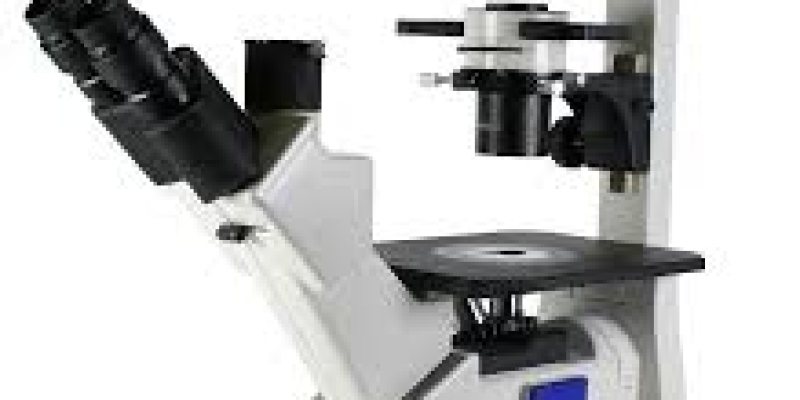

Fisher Scientific Inverted Infinity and Phase Contrast Microscope Model 11-350-119

» Trinocular head Siedentopf type with
light splitter (100% or 20/80%)
» Ergonomic 45˚ observation angle
» Side facing quintuple nosepiece
»Infinity corrected optics
» 4X infinity
» 10X and 20X infinity and phase
» ELWD N.A. 0.30 condenser
» Koehler illumination quartz halogen
6V/30W with intensity control
» Plain stage with glass and metal


Inverted Infinity and Phase Contrast Microscope

With a wide range of features for university and laboratory use, this advanced research microscope features infinity corrected and
phase contrast optics, halogen illumination and trinocular head. Complimenting the illumination system is the ELWD (Extra Long
Working Distance) 0.30 N.A. condenser with its 72mm working distance for larger sample sizes. The condenser is also adjustable,
to provide the optimum amount of illumination for each sample. This series includes built-in internal 110V-220V auto-switching
power supply. Ergonomically designed, professional frame with low-position coaxial focusing allows one-handed operation, making
extended use comfortable.
Supporting these advanced features is the stable “Y” designed stand. The inverted “Y” provides the necessary stability and weight
distribution to handle optional Epi-fluorescence attachments. This microscope is an essential tool when viewing living organisms
within nutrient medium in petri dishes or cell culture flasks.


Specifications and Ordering Information
Model Head Eyepieces Objectives Stage Condenser Illumination
11-350-119 Trinocular 22mm Infinity Corrected
4X, 10X (Phase), 20X (Phase) Plain ELWD N.A. 0.30 6V/30W Halogen

Specifications and Ordering Information
Models 11-350-119
Optical System Infinity Corrected
Observation Tube Trinocular head, Siedentopf
Interpupillary Distance 50-70mm
Inclination 45˚ inclined
Eyepieces N-WF 10X/22mm with diopter adjustment, +/- 5 diopter (Rubber eyeshields included)
Nosepiece Side facing quintuple revolving nosepiece
Objective Classification Infinity Corrected (Phase Contrast for 10X and 20X)
Objectives Infinity Corrected 4X (0.10), Phase 10X (0.25) and 20X (0.4)
Stage Built-in low position plain stage with glass and metal stage inserts
Stage Size 200x260mm
Condenser Extra Long Working Distance 0.30 N.A. Condenser
Focus Mechanism Coaxial coarse and fine focusing system with tension adjustment
Fine Focus Precision 2 μm minimum increment
Filter Holder On side of illuminator
Illumination 6V/30W quartz halogen Koehler illumination with intensity control
Transformer Internal
Power Supply IEC 110V / 220V (UL / CE)
Accessories Included IEC power cord, centering telescope, phase slider, glass and metal stage inserts, blue and green interference
filters, allen hex keys (2), dust cover
Dimensions 388x200x529mm
Weight 11.4kg
Warranty 5 year limited warranty, excluding bulbs, cords, and fuse
