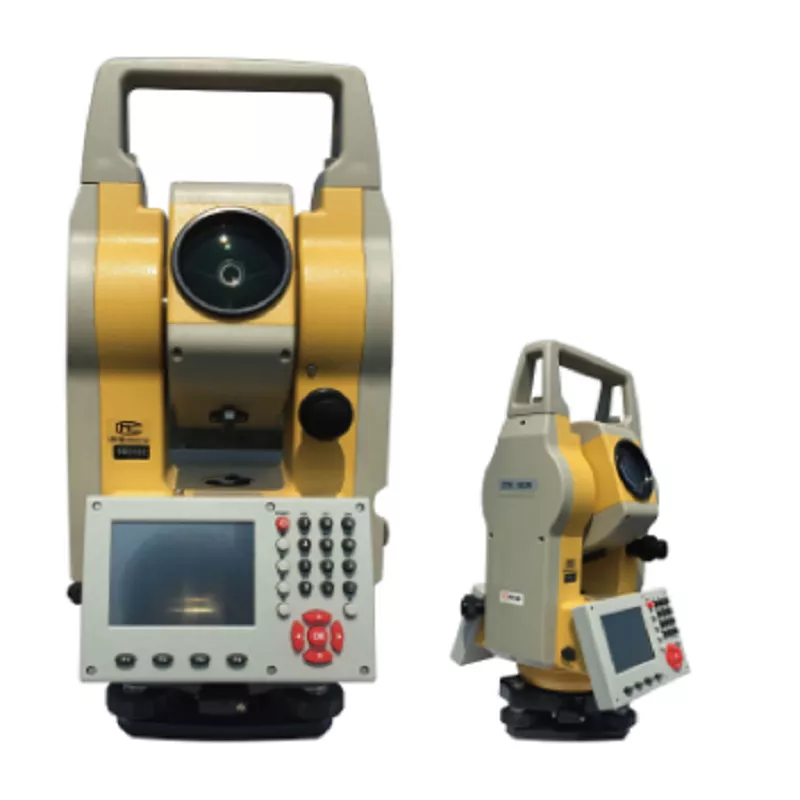

| DTM952R — WINCE Non-Prism Laser Ranging Total Station | ||||
| Distance Measurement Section | ||||
| Range | Non-prism | 600m | ||
| prism | Single prism | 3000m | ||
| Three prism | 5000m | |||
| Accuracy | Non-prism | ±(3mm+2ppm·D) | ||
| Prism | ±(2mm+2ppm·D), ±(3mm+2ppm·D) | |||
| Unit | m/ft | |||
| Display | Maximum | 99999999.9999m | ||
| Minimum | 0.1mm | |||
| Measuring time | Precise model:1S, Track model:0.8S | |||
| Number of time Set | 1 ~ 99 | |||
| Meteorologiccorrection | Input the value and correct automatic | |||
| Prismconstant | Input the value and correct automatic | |||
| Angle Measurement Section | ||||
| Method | Absolute coding | |||
| Grating diameter | 79mm | |||
| Minimum reading | 1″ | |||
| Detection | Horizontal | Diametrical detection | ||
| Vertical | Diametrical detection | |||
| Accuracy | 2″ | |||
| Telescope Section | ||||
| Imaging | Positive | |||
| Length | 170mm | |||
| Effectiveaperture | 48mm | |||
| Magnification | 30× | |||
| Angle of vision | 1.5° | |||
| Distinguishability | 3.5″ | |||
| Minimum focus distance | 1.5m | |||
| Compensator | ||||
| System | Double axis photoelectric tilt sensor or
Single axis liquid tilt sensor |
|||
| Working range | ±3′ | |||
| Distinguishability | 1″ | |||
| Display Section | ||||
| Type | Double sides,320×240 LCD Display | |||
| Data Transmission | ||||
| Port | Bluetooth,SD Card,USB,RS-232C | |||
| Capacity | 40,000 data at least | |||
| Others | ||||
| Plummet |
Optical or Laser plummet |
|||
| Power | Rechargeable lithium battery,DC7.4V,3600mAh | |||
| Continuous working time | 4 hours at least | |||
| Size | 174×207×383mm | |||
| Weight | 6.8Kg | |||
| Working temperature |
-20℃ ~ 50℃ |
|||
