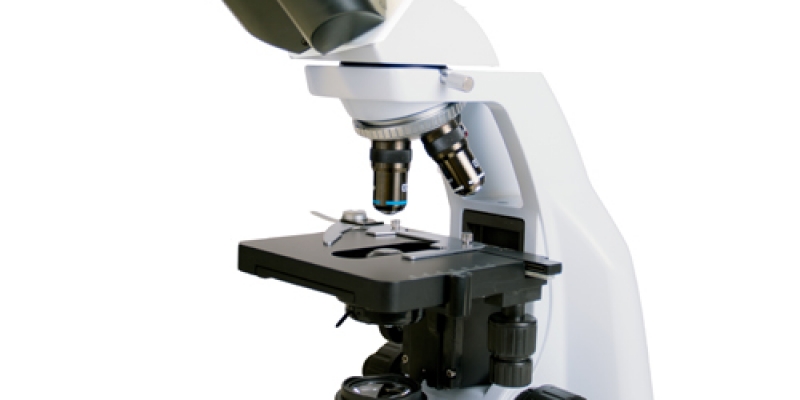

Ceti Max III-Bino Binocular Compound Microscope with 4x, 10x, 40x and 100x Infinity Corrected Plan Achromatic Objectives and LED Illumination

Ceti’s Max III-Bino Binocular Compound Microscope with Infinity Corrected Plan Achromatic Objectives is known for its robust construction and simple operation. This durable microscope is an excellent choice for carrying out everyday applications, especially in teaching laboratories.

Categories: , , Tag:

Description

Ceti’s Max III-Bino Binocular Compound Microscope with Infinity Corrected Plan Achromatic Objectives is known for its robust construction and simple operation. This durable microscope is an excellent choice for carrying out everyday applications, especially in teaching laboratories.

It is equipped with four high clarity Infinity Corrected Plan Achromatic objectives. This microscope also has fixed widefield 10x eyepieces, a quadruple reversed nosepiece, mechanical stage and a brightfield Abbe condenser.

With a bright white 3W LED light source, this microscope can produce dramatic and high-quality images.

Optional accessories available.



Features

Equipped with four high clarity Infinity Corrected Plan Achromatic objectives. This microscope also has fixed widefield 10x eyepieces, a quadruple reversed nosepiece, mechanical stage and a brightfield Abbe condenser.



Specification

Optical Head
     Binocular, inclined at 45°
     Interpupillary distance adjustment (Siedentopf Type):  47 to 78mm
     Dioptric adjustment on one eyepiece
Eyepieces:  10x / 18mm widefield (pointer in one eyepiece)
Nosepiece:  Quadruple reversed, revolving with click stop
Objectives:  4x, 10x, 40x, 100x (oil) Infinity Corrected Plan Achromatic
Condenser:  Brightfield Abbe – NA 1.25, precentred, focusable, with iris diaphragm and filter holder
Stage
     160 x 140mm with built-in mechanical stage and slide holder
     75 x 50mm movement, Vernier scale
Focusing Knobs:  Coaxial coarse and fine with stop
Mains Power:  100 – 240V / 50 – 60Hz
Converter:  Built-in low voltage (3.2 – 3.5V electric)
Illumination:  LED 3W with intensity control (Halogen also available)
Supplied With:  Immersion oil (5ml), blue filter, dust cover, power cord with unique ‘self-store’ system and instruction manual
