Description

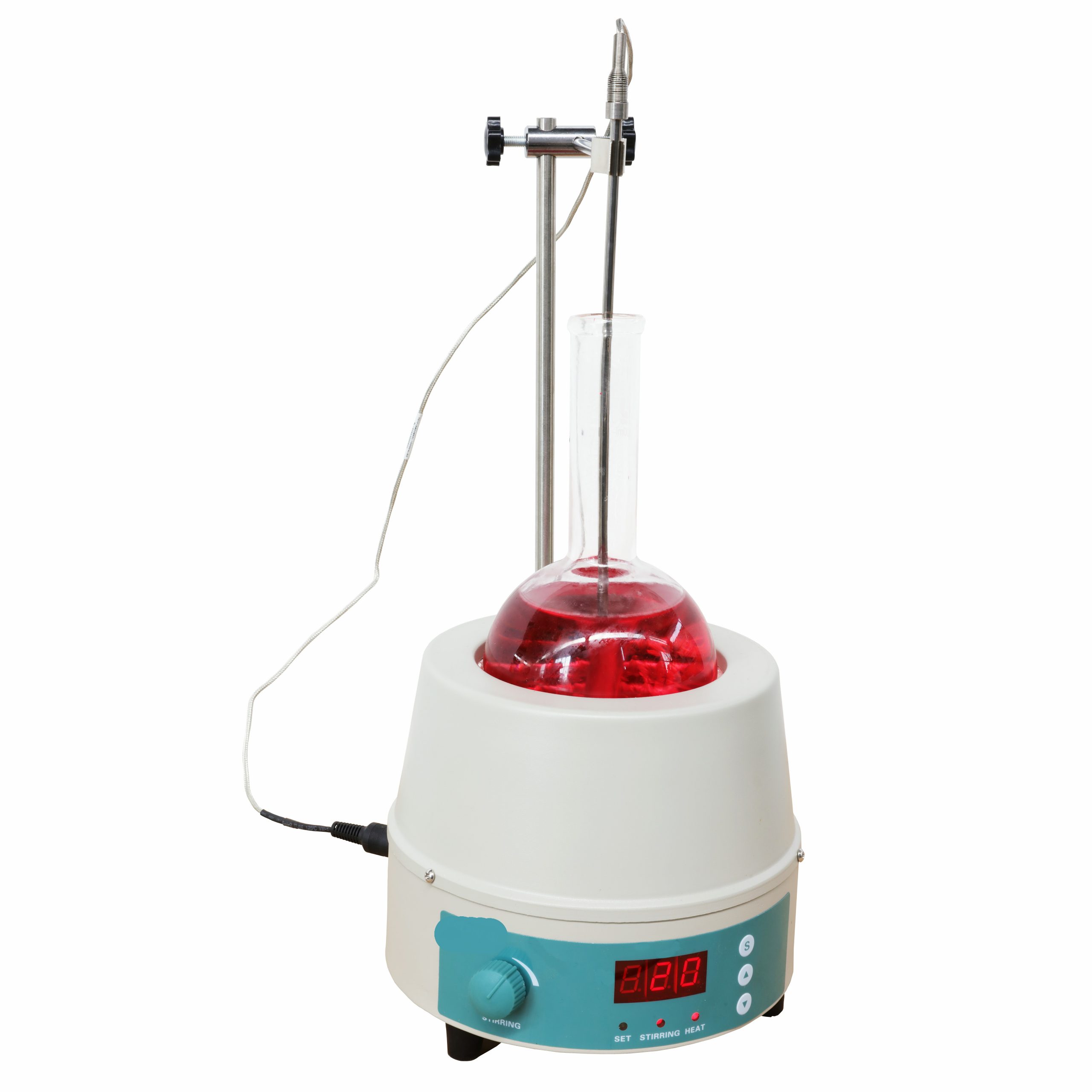

Digital & Magnetic Stirring Heating Mantles
Up to 450°C general heating equipment.
Characteristics:
- PID single screen temperature controller.
- Heating and stirring can be used simultaneously, stepless speed adjustable.
- PT100 temperature sensor, with adjustable sensor rack and stainless rods.
Main Technical Parameters:
| Model | 98-III-B | ||||||||||
|
Function
|
Capacity(ml) | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
| Heating Mode | Surface heat-conduction | ||||||||||
| Surface Max. Temp.(°C) | 450°C | ||||||||||
| Temperature control range | RT+20 ∼ 250°c | ||||||||||
| Speed range | 0 ∼ 1600rpm | ||||||||||
|
Structure
|
Heating element | Nichrome wire | |||||||||
| Stir bar | PTFE | ||||||||||
| Shell (insulation layer) | High quality aluminum silicate cotton | ||||||||||
| Motor power | 0.01kW | ||||||||||
| Heating power (kW) | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 | |
| Controller | Working mode | Continuous | |||||||||
| Exterior size (mm) | ¢ 220 x 165 | ¢ 280 x 220 |
¢ 330 x 230 |
¢ 340 x 245 |
¢ 350 x 250 |
¢ 425 x 320 |
¢ 470 x 340 |
||||
|
Specification
|
Packing size (mm) | 230 x 230 x 195 | 290 x 290 x 300 |
340 x 340 x 350 |
360 x 360 x 300 |
390 x 390 x 310 |
380 x 380 x 330 |
510 x 510 x 380 |
|||
| Voltage(V) | 100 ∼ 120V or 200 ∼ 240V | 200 ∼ 240V | |||||||||
| N,W, (kg) | 2.5 | 5.5 | 6.5 | 7.5 | 8 | 9.8 | 16 | ||||
| G.W. (kg) | 2.8 | 6 | 7 | 8 | 9.2 | 12 | 20 | ||||
