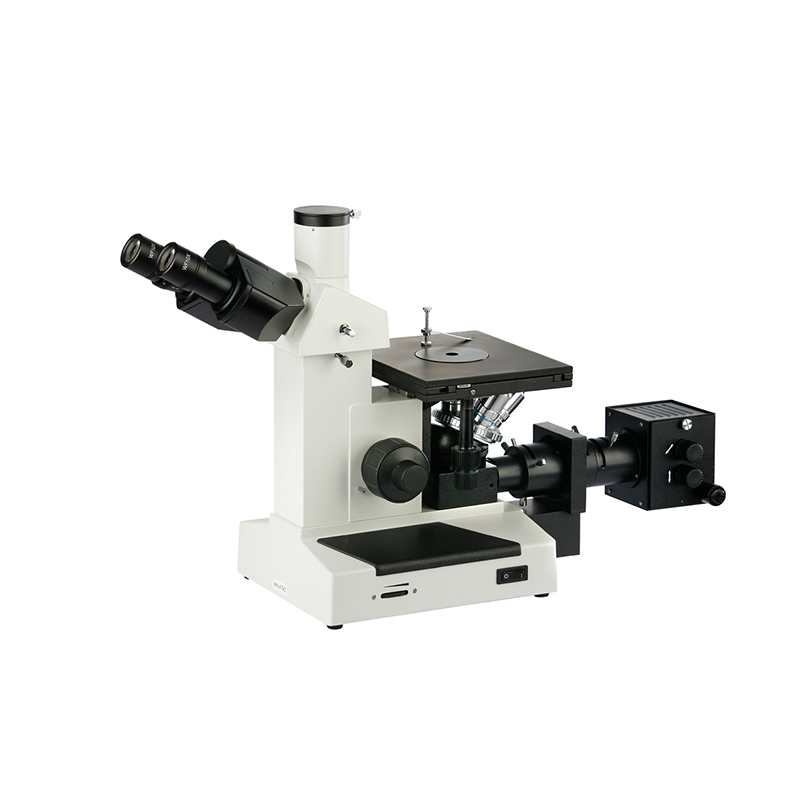

| SPECIFICATION |
MODEL |
| 4XC |
| HUYGENS EYEPIECESNG HEAD |
WIDE FIELD WF10X (Φ18MM) |
● |
| OBJECTIVE |
PLAIN ACHROMATIC OBJECTIVE WITH LONG WORKING DISTANCE (NO COVER GLASS) PL10X/0.25 |
● |
| PLAIN ACHROMATIC OBJECTIVE WITH LONG WORKING DISTANCE (NO COVER GLASS) PL20X/0.40 |
● |
| PLAIN ACHROMATIC OBJECTIVE WITH LONG WORKING DISTANCE (NO COVER GLASS) PL40X/0.60 |
● |
| PLAIN ACHROMATIC OBJECTIVE WITH LONG WORKING DISTANCE (NO COVER GLASS) PL100X/1.25 (SPRING, OIL) |
● |
| EYEPIECE TUBE |
TRINOCULAR, INCLINATION OF 30° |
● |
| FILTER |
FROSTED FILTER |
● |
| BLUE FILTER |
● |
| GREEN FILTER |
● |
| YELLOW FILTER |
● |
| FOCUS SYSTEM |
COAXIAL COARSE / FINE SYSTEM, WITH TENSIONAL ADJUSTABLE AND UP STOP, MINIMUM DIVISION OF FINE FOCUSING: 2 UM |
● |
| NOSEPIECE |
QUADRUPLE (BALL BEARING INNTER LOCATING) |
● |
| STAGE |
DOUBLE LAYER MECHANICAL (SIZE 180MMX150MM, MOVING RANGE: 15MMX15MM |
● |
| ILLUMINATION |
6V 20W HALOGEN LAMP, BRIGHTNESS CONTROL |
● |
